Basic Info.
Lubrication Style
Lubricated
Cooling System
Water Cooling
Cylinder Arrangement
Balanced Opposed Arrangement
Cylinder Position
Angular
Structure Type
Closed Type
Compress Level
Double-Stage
Refrigerant Type
Air
Power Source
Diesel Engine
Feature
Energy Saving
Working Pressure
7~35bar
Installation Type
Movable Type
Air Delivery
115~1590cfm
Transport Package
Fumigation Wooden Box, by Sea
Specification
2200x1800x1100
Origin
China
HS Code
8414804090
Production Capacity
500sets/Year
Product Description
Xuzhou Huayan Gas Equipment Co.,Ltd, exporting diaphragm compressor, piston compressor, oxygen generator, gas cylinder and nitrogen generators with good quality and low price.
The screw compressor adopts a well-known machine head, and the air volume control system ensures the stability of the machine. The diesel mobile screw compressor launched by our company uses power to minimize fuel consumption and is suitable for harsh outdoor use environments; low noise, low Vibration technology; multiple automatic alarms and shutdown protection devices; easy and quick maintenance. Products are widely used in various industries such as railways, hydropower, infrastructure, machinery, and mining.
Features:
1. More than 40 years of accumulated design technology, outstanding system configuration, and achieved combination;
2. The engine adopts Yuchai and Cummns brands, which is fuel-efficient, durable, has sufficient power reserve, easy maintenance, low cost and guaranteed after-sales service;
3. Designed to withstand high temperature environments, the air supply is stable and pulse-free, and there is no need to add a buffer tank;
4. Equipped with automatic shutdown and alarm system, which is easy to operate and ensures the operation of the equipment;
5. The front, rear, left and right opening and closing box design provides convenient maintenance with a spacious space.
6. The unique oil-gas separation structure and high-strength oil content fully ensure the low fuel consumption of the compressor under high-pressure operation.
It is the gas source of choice for high-pressure down-the-hole drilling rigs, water well drilling rigs, coalbed methane mining, geothermal well mining and other industries.
The screw compressor adopts a well-known machine head, and the air volume control system ensures the stability of the machine. The diesel mobile screw compressor launched by our company uses power to minimize fuel consumption and is suitable for harsh outdoor use environments; low noise, low Vibration technology; multiple automatic alarms and shutdown protection devices; easy and quick maintenance. Products are widely used in various industries such as railways, hydropower, infrastructure, machinery, and mining.
Features:
1. More than 40 years of accumulated design technology, outstanding system configuration, and achieved combination;
2. The engine adopts Yuchai and Cummns brands, which is fuel-efficient, durable, has sufficient power reserve, easy maintenance, low cost and guaranteed after-sales service;
3. Designed to withstand high temperature environments, the air supply is stable and pulse-free, and there is no need to add a buffer tank;
4. Equipped with automatic shutdown and alarm system, which is easy to operate and ensures the operation of the equipment;
5. The front, rear, left and right opening and closing box design provides convenient maintenance with a spacious space.
6. The unique oil-gas separation structure and high-strength oil content fully ensure the low fuel consumption of the compressor under high-pressure operation.
It is the gas source of choice for high-pressure down-the-hole drilling rigs, water well drilling rigs, coalbed methane mining, geothermal well mining and other industries.
Screw air compressor product specifications
| Screw compressor model | SGF-10/15 Diesel powered air compressor | SGF-15/13 Diesel powered air compressor | SGF-18/17 Diesel powered air compressor |
| Type/hoisting method | Diesel powered, mobile/crane | Diesel powered, mobile/crane | Diesel powered, mobile/crane |
| Compressed medium | air | air | air |
| Rated exhaust pressure (MPa) | 1.3 | 1.3 | 1.7 |
| Rated volume flow (m³/min) | 15±5% | 15±5% | 18±5% |
| Exhaust temperature (ºC) | ≤75ºC | ≤75ºC | ≤75ºC |
| Diesel engine parameters | QSB5.9-C160-30 | QSB5.9-C180-30 | QSB5.9-C220-30 |
| YUCHAI YC6J175-T300 | YUCHAI YC405190-T300 | YUCHAI YC6J220-T300 | |
| Speed control method | Pneumatic throttle adjustment, stepless speed control | Pneumatic throttle adjustment, stepless speed control | Pneumatic throttle adjustment, stepless speed control |
| Inhalation method | Turbocharging + air-to-air intercooling | Turbocharging + air-to-air intercooling | Turbocharging + air-to-air intercooling |
| Prescribed working conditions and environmental conditions | Altitude: ≤1200m; ambient temperature: -10ºC-35ºC; relative humidity: 60%; site inclination ≤30° | Altitude: ≤1200m; ambient temperature: -10ºC-35ºC; relative humidity: 60%; site inclination ≤30° | Altitude: ≤1200m; ambient temperature: -10ºC-35ºC; relative humidity: 60%; site inclination ≤30° |
| Startup performance | When the ambient temperature is ≥-10ºC, the engine can start smoothly without using any low-temperature starting device. | When the ambient temperature is ≥-10ºC, the engine can start smoothly without using any low-temperature starting device. | When the ambient temperature is ≥-10ºC, the engine can start smoothly without using any low-temperature starting device. |
| Starting battery capacity/voltage | 165AH×2/24V | 165AH×2/24V | 180AH×2/24V |
| Emission Standards | China National III | China National III | China National III |
| Average fuel consumption (L/h) | 24 | 28 | 32 |
| Diesel tank capacity (L) | 200 | 200 | 300 |
| Oil capacity (L) | 17 | 17 | 20 |
| Coolant capacity (L) | 48 | 48 | 60 |
| Triple filter maintenance time (diesel engine) | First maintenance of 50, every 500 hours | First maintenance of 50, every 500 hours | First maintenance of 50, every 500 hours |
| Heat dissipation method | Air cooling/side blowing | Air cooling/side blowing | Air cooling/side blowing |
| Screw compressor/compression level | Twin screw/single stage compression | Twin screw/single stage compression | Twin screw/two-stage compression |
| Oil content/oil content of compressed air (ppm) | Slight oil /≤3ppm | Slight oil /≤3ppm | Slight oil /≤3ppm |
| Compressor lubricating oil model/oil content (L) | 46# semi-synthetic oil/48L | 46# semi-synthetic oil/48L | 46# semi-synthetic oil/65L |
| Flow adjustment range | 80-100% | 80-100% | 80-100% |
| Lubricating oil operating temperature | 75ºC-100ºC | 75ºC-100ºC | 75ºC-100ºC |
| Screw oil replacement time | First maintenance of 500, every 2000 hours | First maintenance of 500, every 2000 hours | First maintenance of 500, every 2000 hours |
| Triple filter maintenance time (compressor) | First maintenance of 500, every 2000 hours | First maintenance of 500, every 2000 hours | First maintenance of 500, every 2000 hours |
| Safety valve releases pressure | 1.8MPa | 1.5MPa | 2.0MPa |
| Connection type | Direct connection/involute elastic coupling | Direct connection/involute elastic coupling | Direct connection/involute elastic coupling |
| Noise (dB (A)) | ≤90 | ≤90 | ≤93 |
| Overall dimensions (mm): L × W × H | 2400×1750×2000 (excluding traction, traction length 500) | 2400×1750×2000 (excluding traction, traction length 500) | 3040×2000×2200 (excluding traction, traction length 500) |
| Total weight (T) | 2.3 | 2.3 | 2.95 |
| Exhaust port size | G1,G11/2 | G1,G2 | G1,G2 |
For any more information about the gas compressor, please kindly contact us

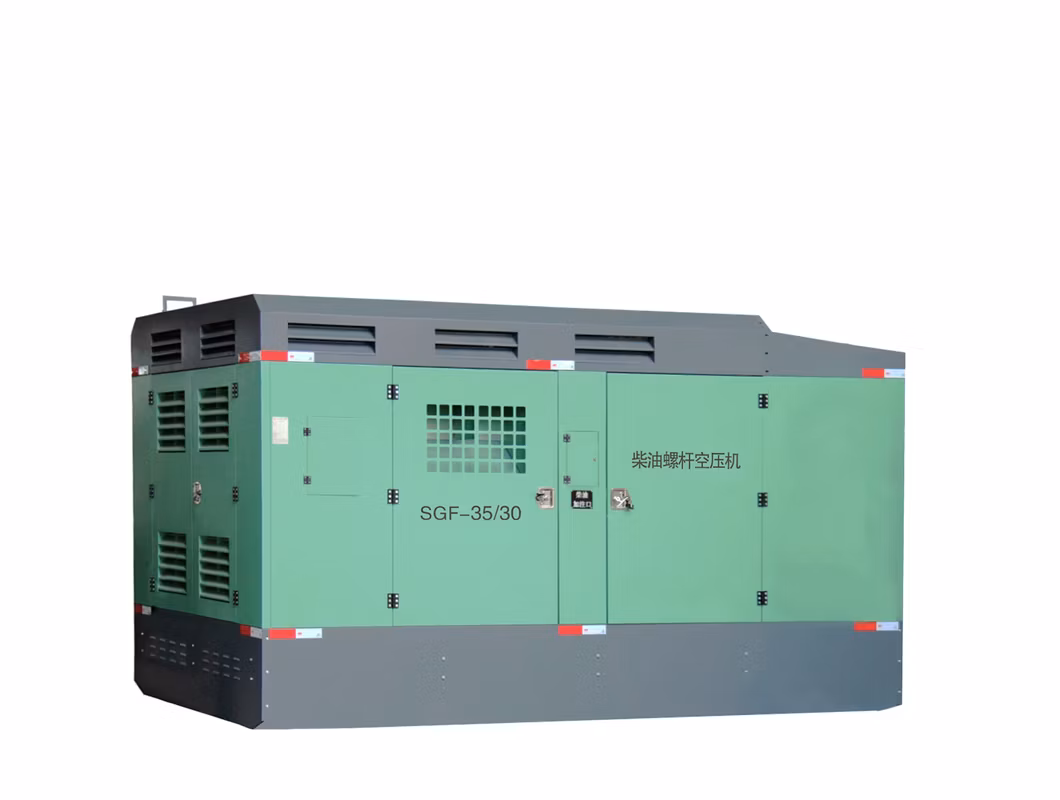

Picture display
Company strength display
After Sales Service
1.Quick response within 2 to 8 hours, with a reaction rate exceeding 98%;
2. 24-hour telephone service, please feel free to contact us;
3. The whole machine is guaranteed for one year (excluding pipelines and human factors);
4. Provide consulting service for the service life of the whole machine, and provide 24-hour technical support via email;
5. On-site installation and commissioning by our experienced technicians;
Exhibition Display
Certificate display
Applications
Packaging and Shipping
FAQ
1.How to get a prompt quotation of gas compressor ?
1)Flow Rate/Capacity : ___ Nm3/h
2)Suction/ Inlet Pressure : ____ Bar
3)Discharge/Outlet Pressure :____ Bar
4)Gas Medium :_____
5)Voltage and Frequency : ____ V/PH/HZ
2.How long is delivery time ?
Delivery time is around the 30-90 days .
3.What about the voltage of products? Can they be customized?
Yes, the voltage can be customized according to your inquire.
4.Can you accept OEM orders?
Yes, OEM orders is highly welcome.
5.Will you provide some spare parts of the machines?
Yes, we will .
