Basic Info.
Model NO.
SHSL-D1-014
Cooling Water
Industrial Water
System Type
Closed System
Fans Species
Frequency Fan
Noise Level
Low
Application Fields
Machinery
Certification
ISO
Condition
New
Cooler Type
V/Plate
Used for
Cooling System
Power Supply
380`400V/3pH/50Hz
Cooling Capacity
5-800kw
Fan
Ec/AC
Medium
Water/Glycol/Oil
Transport Package
Customzied
Specification
customized
Trademark
Shenglin
Origin
China
HS Code
8419500090
Production Capacity
100sets/Months

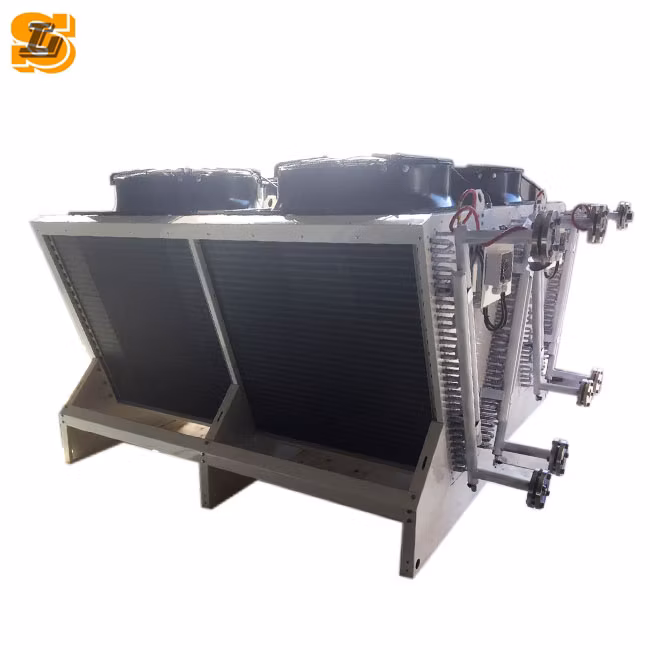

Product Description
Shanghai Shenglin is a professional dry air cooler, chiller, condenser, evaporator manufacturer in China, which has more 16 years experience in HVAC area.
Dry Cooler Feature:
• Unique floating coil design avoids leakage caused by thermal expansion and contraction.
• Staggered fin pattern design and corrugated fin enhance air flow turbulence
• Inner-grooved copper tube increase heat transfer area and enhance heat transfer
• Optimized flow pass design ensure fully heat exchange with refrigerant
• Equipped with 2nd generation owl-wing fan motor as standard. It features with low noise level, large volume flow and low energy consumption. Ready for dual speed connection.
• Outdoor type powder coated casing made of galvanized sheet metal and stainless steel bolts provide a high resistance to corrosion.
 |  |
• Optional features:
§ EC variable speed fan motor, to save great energy
§ ZAplus/AxiTop for greater volume flow and extreme silence
§ Adiabatic system significantly reduce energy consumption in summer
§ Epoxy coated or hydrophilic aluminum fin suitable for coastal or high corrosion area
§ Fluid dry cooler
§ Clean stainless steel tube and aluminum fin coil for cooling deionized water.
Some standard dry cooler technical parameters as below
| Dry Cooler Type | D1-005-1x350 | D1-007-1x350 | D1-009-1x450 | D1-011-1x450 | D1-013-1x450 | D1-017-1x500 | D1-020-1x500 | ||
| Capacity (35C outdoor temp.) | KW | 4.89 | 6.83 | 9.39 | 10.99 | 13.33 | 17.01 | 19.8 | |
| Medium | Water flow | M3/h | 0.85 | 1.2 | 1.63 | 1.91 | 2.3 | 3 | 3.5 |
| Pressure drop | kPa | 36 | 58 | 25 | 40 | 80 | 60 | 40 | |
| Air flow | M3/h | 2828 | 2492 | 6199 | 5827 | 5225 | 8168 | 7601 | |
| Fan motor | Phase | 1 | 1 | 3 | 3 | 3 | 3 | 3 | |
| W | | 140 | 140 | 540 | 540 | 540 | 830 | 830 | |
| A | | 0.6 | 0.6 | 1.1 | 1.1 | 1.1 | 1.45 | 1.45 | |
| Fan | No X φ | | 1x1x350 | 1x1x350 | 1x1x450 | 1x1x450 | 1x1x450 | 1x1x500 | 1x1x500 |
| Sound pressure level | dB(A) | 31 | 31 | 43 | 43 | 43 | 49 | 49 | |
| Dimension | L | mm | 870 | 870 | 1020 | 1020 | 1020 | 1220 | 1220 |
| W | mm | 525 | 525 | 625 | 625 | 625 | 825 | 825 | |
| H | mm | 797 | 797 | 820 | 820 | 820 | 870 | 870 | |
| Product weight(empty) | | kg | 38 | 48 | 55 | 60 | 67 | 82 | 91 |
 |  |  |  |
OEM design dry cooler
Tell us the datas as following:
A. Required water inlet temperature?
B. Required water outlet temperature?
C. Water flow?
D.Ambient temperature?
E.Supply power(voltage-Hz-phase)
G.Any other requirements ?
What's the order process?
1) Inquiry---provide us all clear requirements.
2) Quotation---official quotation list with all clear specifications.
3) PI--Confirm all the order technical data and price
4) Payment terms--- T/T deposit in advance
5) Production---mass production
6) Shipping--- by sea. Detailed picture of package will be provided.
7) After-sales Service--Any questions, we will try best to assist to solve for you.
